The use of water in food production is becoming an increasingly critical issue due to the impacts of climate change and a rising global population. As water scarcity intensifies, the agricultural sector, which consumes the majority of our planet’s finite water resources, must adopt more efficient irrigation methods. Agriculture accounts for 70% of the global freshwater usage and up to 95% of water withdrawals in some developing nations.
Let’s identify the most water-efficient irrigation system that is essential to address this challenge effectively.
What is drip irrigation?
Drip irrigation is the most efficient method for water and nutrient delivery in agriculture, precisely targeting the plant’s root zone and ensuring the correct amounts of water and nutrients are delivered at the optimal times. The precise function allows each plant to receive the needed water for optimal growth, which boosts productivity and promotes sustainable farming practices.
Design and components of the drip irrigation system
Drip irrigation is an advanced micro-irrigation technique that delivers water and nutrients to crops and plants with remarkable efficiency. By administering water and nutrients directly to the plant’s roots at controlled intervals, this method ensures optimal growth conditions for crops. Many farmers prefer drip irrigation due to its numerous benefits, including increased yield and the conservation of water, energy, fertilizers, and crop protection products.
Key components of a typical drip irrigation system include:
- Water Source: This could be a tap, well, reservoir, or other water supply, utilizing a drip water irrigation kit.
- Drip Filter: Essential for removing debris and particles from the water, the filter prevents clogging of emitters and tubing.
- Pressure Regulator: Maintaining optimal water pressure throughout the system protects emitters and ensuring uniform water distribution.
- Mainline Tubing: Typically made of PVC, polyethylene, or another durable material, the tubing acts as the primary conduit for water delivery from the source to the rest of the system.
- Sub-Mainline Tubing: In larger systems, this tubing distributes water from the mainline to various sections or zones of the garden or field.
- Drip Line: Distribution lines with built-in emitters deliver water directly to the root zones of plants.
- Drip Emitters: Devices that control the water flow rate from the tubing to the plants are available in various types such as drippers, micro-sprayers, and bubblers, each catering to different watering needs.
- Drip Connectors and Fittings: These are used to join tubing sections, create branches, and connect emitters, with common fittings including couplings, tees, elbows, and valves.
- End Caps and Flush Valves: End caps seal off the ends of the tubing, while flush valves allow for system flushing to remove debris and prevent clogging.
- Pressure Gauges and Flow Meters: Pressure gauges monitor system pressure, and flow meters measure water flow rates, aiding in system monitoring and troubleshooting.
These components work together to create a precise and efficient drip irrigation system, delivering water directly to plant roots while conserving water and minimizing waste. Proper installation, maintenance, and monitoring are crucial for maximizing the system’s effectiveness and longevity.
How Does Drip Irrigation System Work?
Unlike surface and sprinkler irrigation, drip irrigation wets only a portion of the soil root zone, potentially as little as 30% of the volume wetted by other methods. The wetting patterns that result from dripping water onto the soil vary based on discharge rates and soil types, such as sand and clay.
| Factor |
More Irrigation |
Less Irrigation |
| Climate |
hot, dry, windy (high evaporative demand) |
calm, cool, humid conditions (low evaporative demand) |
| Plants |
Shallow-rooted; complete ground cover |
deep-rooted; healthy plants; incomplete ground cover |
| Soil |
Shallow, coarse textured |
deep, fine textured |
Despite only wetting part of the root zone, this is essential to meet the crop’s full water needs. Drip irrigation does not reduce the water consumed by crops; rather, it ensures precise water application to support optimal growth. The primary water savings come from minimizing deep percolation, surface runoff, and soil evaporation, which depend heavily on proper equipment use.

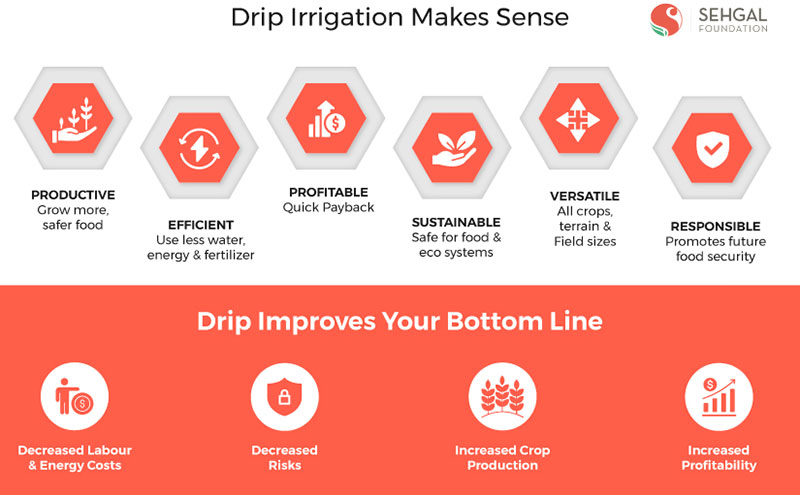

The benefits/ advantages of drip irrigation systems
Water efficiency
Drip irrigation is renowned for its efficiency in water usage. Delivering water directly to the root zone of crops minimizes water loss due to evaporation and runoff. This method ensures that water is used more effectively and that plants receive the precise amount they need. According to studies in agriculture, drip irrigation systems use 30 to 50% less water compared to conventional irrigation methods.
Overwatering prevention
The risk of overwatering is significantly reduced because the system provides a controlled amount of water that is vital for the health of plants. Overwatering leads to root rot and other plant diseases. Drip systems help maintain optimal soil moisture levels, ensuring plants receive adequate hydration without the adverse effects of excessive water.
Reduced weeding
Drip irrigation targets the root zones of plants, meaning only the intended crops are watered. This precise watering method deprives weeds of the moisture they need to thrive, resulting in fewer weeds in the garden. Consequently, farmers and gardeners spend less time weeding and more time tending to their crops.
Cost savings
The initial investment in a drip irrigation system can be recouped within one to two growing seasons due to the savings on water bills. The precise application of water reduces the need for additional fertilizers and pesticides, further lowering costs. Over time, the reduced labor and resource costs contribute to significant financial savings for users.
Time savings
Drip irrigation systems automate the watering process, eliminating the need for manual watering. These automatic drip irrigation systems save considerable time for farmers and gardeners, allowing them to focus on other important tasks. With a timer, the system can be set to water plants at optimal times, ensuring consistent moisture levels.
Versatility
Drip irrigation systems are highly adaptable and can be used in a variety of agricultural settings, including gardens, vineyards, greenhouses, and row crops. They are suitable for new and existing landscapes and function effectively on flat or hilly terrains. The system can also be used to apply fertilizers directly to the root zone, enhancing nutrient uptake and promoting healthier plant growth.
Enhanced plant health
By delivering water directly to the roots, drip irrigation helps prevent water from sitting on leaves, which can cause mildew and other diseases. This method reduces the likelihood of fungal infections and other plant diseases, leading to healthier and more vigorous plant growth. Additionally, consistent moisture levels are crucial for optimal growth, high yields, and ensuring that plants do not experience water stress.
Water conservation
In regions where water is scarce, drip irrigation is particularly beneficial. By reducing water usage and minimizing waste, this system helps conserve a valuable natural resource. The conservation of water not only benefits the environment but also reduces water costs for farmers and gardeners.
Why should farmers consider the drip irrigation system?
The short answer is water conservation. However, if you are looking to understand the ‘why’ behind the farmer’s preference for drip irrigation, take a look at these 7 ways in which drip irrigation conserves water:
- High application uniformity
Drip irrigation systems boast a very high application uniformity, typically over 90%. This means that water is distributed evenly and precisely across the entire irrigation area. High uniformity ensures that each plant receives the same amount of water, reducing wastage and ensuring optimal hydration for all crops.
Radakrishna owns 3.5 acres of land and grows rainfed crops like ragi, red gram, and field bean, as well as irrigated crops like tomato, cabbage, and potato crops. The conventional flood irrigation method that he followed led to considerable wastage of water, besides lowering crop yields.
Radakrishna contributed ₹15,000 for a drip irrigation system and received training from S M Sehgal Foundation’s Agricultural development team on its operation and management. Drip irrigation saves water by about 70–80% and enhances critical agronomic efficiencies.
“
Drip irrigation will allow me to cultivate an additional crop during the year, significantly contributing to my income.
~ Radakrishna, farmer
- Direct soil application
Unlike sprinkler systems that disperse water into the air, drip irrigation delivers water directly to the soil at the base of each plant. This method eliminates water loss caused by wind drift and evaporation, which are common issues with overhead irrigation systems. Direct application ensures that more water reaches the root zone where it is needed most.
- Low water application rates
Drip irrigation systems apply water at low rates, allowing for precise, controlled delivery that can be tailored to the specific needs of the plants. This method of “spoon-feeding” water means that it can be applied in exact amounts required by the plants, even on a daily or hourly basis. Other irrigation methods often involve higher quantities of water applied less frequently, leading to inefficiencies such as deep percolation (where water moves beyond the root zone) or runoff. This targeted approach is especially beneficial for young plants, which require frequent watering but in smaller amounts.
- Reduced runoff on heavier soils or sloping terrain
The low application rates of drip irrigation systems are less likely to cause runoff, especially in areas with heavier soils or sloping terrain. Because the water is applied slowly and directly to the root zone, it has more time to infiltrate the soil, reducing the risk of surface runoff and erosion. This makes drip irrigation ideal for challenging landscapes where traditional irrigation methods might lead to significant water loss.
- Targeted watering
Drip irrigation systems are designed to water only the targeted areas, such as the root zones of crops while avoiding non-targeted areas like furrows, roads, and pathways. This precision prevents water from being wasted in areas that do not contribute to plant growth, enhancing overall water-use efficiency. In greenhouses, drip irrigation can be adjusted to avoid watering between beds, blocks, or benches, and in landscaping, it can be configured to avoid hardscapes and buildings.
- Adaptability to odd-shaped planting areas
Drip irrigation is highly adaptable and can be configured to suit irregularly shaped planting areas that are difficult to manage with sprinklers or gravity-fed systems. This flexibility ensures that even awkward or uniquely shaped plots receive adequate irrigation without wastage, making it a versatile solution for diverse agricultural layouts.
- Efficient seed germination and transplanting
Drip irrigation systems are capable of providing the precise moisture levels needed for seed germination and transplant establishment. This eliminates the need for initial “sprinkling up,” which often results in water wastage during the early stages of crop growth. By maintaining consistent soil moisture, drip irrigation supports healthy plant development from the very beginning, enhancing water use efficiency and crop yield.
The involvement of top, sustainable, rural development NGOs in India specializing in agricultural development, like the aforementioned S M Sehgal Foundation, is crucial in addressing these challenges.
How is S M Sehgal Foundation helping farmers improve their drip irrigation practice?
S M Sehgal Foundation’s Agriculture Development Program enhances mechanization adoption among small and marginal farmers by offering farm machinery at subsidized rates. Farmers invest in the machinery, fostering ownership and entrepreneurial spirit. Training is provided for operation and maintenance, enabling farmers to generate additional income by leasing equipment to fellow farmers.
Jameel adopts drip irrigation and tomato staking methods
Jameel, a farmer from Tauru block in Nuh district, Haryana, attended an S M Sehgal Foundation meeting in August 2021 and learned about drip irrigation benefits to address critically low water levels. He adopted the technique in December 2021, leading to a 40% increase in his tomato yield. Inspired by the success, he invested INR 1,00,000 in February 2022 to expand drip irrigation and staking for bottle gourd cultivation.
Read Jameel’s full story here.
FAQs
Drip irrigation is an advanced micro-irrigation technique that delivers water and nutrients directly to the plant’s root zone with high precision, ensuring optimal growth conditions. It minimizes water loss through evaporation and runoff, making it highly efficient. Drip irrigation uses 30 to 50% less water compared to conventional methods, boosting productivity and promoting sustainable farming practices.
A typical drip irrigation system includes the following components:
- Water Source (Tap, well, reservoir, or other water supplies)
- Drip Filter: Removes debris to prevent clogging.
- Pressure Regulator: Maintains optimal water pressure.
- Mainline Tubing and Sub-Mainline Tubing: Distributes water from the source to various zones.
- Drip Line and Emitters: Deliver water directly to the root zones.
- Connectors and Fittings: Join tubing sections and connect emitters.
- End Caps and Flush Valves: Seal tubing ends and allow system flushing.
- Pressure Gauges and Flow Meters: Monitor system pressure and water flow.
Drip irrigation saves water by applying it directly to the root zone of plants at controlled rates, reducing losses due to evaporation, deep percolation, and runoff. It uses water more effectively, ensuring plants receive the exact amount needed, which result in water savings of 70–80% compared to traditional methods like flood irrigation.
Benefits of drip irrigation systems include:
- High water efficiency by minimizing evaporation and runoff.
- Prevention of overwatering and related plant diseases.
- Reduction in weed growth due to targeted watering.
- Cost savings on water bills, fertilizers, and pesticides.
- Time savings due to automation.
- Versatility in various agricultural settings and terrains.
- Enhanced plant health and growth through precise water delivery.
Drip irrigation improves plant health by delivering water directly to the roots, preventing water from sitting on leaves and reducing the risk of mildew and fungal diseases. Consistent moisture levels ensure plants do not experience water stress, leading to healthier and more vigorous growth.
The future of drip irrigation involves integrating smart technology, which enhances water resource allocation and crop yields. Smart irrigation systems use sensors and IoT devices to monitor soil moisture and weather conditions, allowing for real-time adjustments and precise water delivery. This technology helps maintain optimal moisture levels, conserve water, and support sustainable farming practices.
Challenges include:
- High initial costs for acquiring and implementing new technologies.
- Limited education and technical skills among farmers.
- Lack of reliable internet connectivity and electricity in rural areas.
- The digital divide, which hampers the effective use of smart technologies.
- Need for substantial financial support or subsidies to make investments affordable for small and marginal farmers.
